Detailed Explanation of the Structure and Maintenance of Slurry Pumps

Unlock the secrets to maintaining slurry pumps with our comprehensive guide! Delve into essential components, understand pump functionality, and discover best practices for peak performance. Enhance your expertise and extend the lifespan of your slurry pump with invaluable insights from industry experts.



In the complex processes of industrial production, slurry pumps serve as key equipment for transporting slurries containing solid particles. Their stable operation is directly linked to the production efficiency and cost control of numerous industries. Whether in the transportation of mineral slurry for mining or ash removal in thermal power plants, slurry pumps play an indispensable role. To deeply understand how slurry pumps operate efficiently under harsh conditions and how to scientifically maintain them, it is essential to start with their precise structural design.

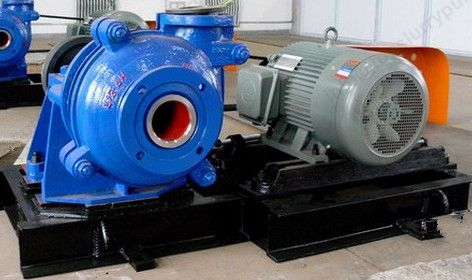

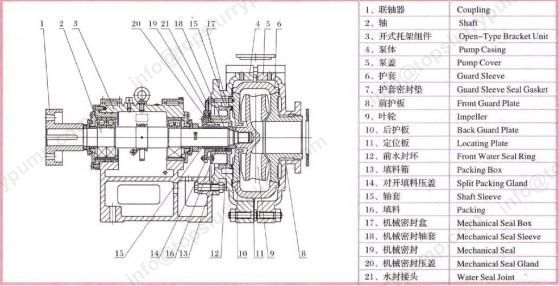

I. Precise Design: The Foundation for Efficient Operation - Basic Structure of Slurry Pumps



A. Pump Head Structure: A Sturdy Fortress Against Wear

The pump head of a slurry pump adopts a double-layer casing design, like equipping the equipment with dual armor. The ingenious combination of inner and outer double-layer metal structures endows the pump body with strong wear and impact resistance, effectively withstanding the erosion of solid particles in the slurry. The outer casing of the double casing features a vertical split structure, which not only facilitates equipment installation and disassembly but also provides high flexibility for the outlet position. The outlet can be rotated and installed at multiple positions at specific angular intervals (e.g., 90° or 180°) to meet diverse engineering requirements, acting as a "flexible delivery channel" that accurately connects to pipelines in complex industrial layouts.



In terms of sealing protection, slurry pumps adopt a combination of dynamic sealing, packing sealing, or mechanical sealing, forming a multi-layer protection system—like setting up multiple "gatekeepers" for the pump body to prevent shaft seal leakage. The labyrinth clearance sealing design between the impeller and the rear wear plate is ingenious, significantly reducing slurry leakage to the packing box and ensuring sealing reliability. The back vanes on the impeller are equally crucial: they discharge  slurry in a timely manner, improving volumetric efficiency, reducing erosion from backflow, and significantly extending the service life of flow-through components. Additionally, the setting of a disassembly ring is thoughtful, avoiding shaft damage caused by difficult component removal during maintenance and making repair work safer and more convenient.



B. Bracket Structure: A Solid Backing for Stable Operation

As an important supporting part of the slurry pump, the bracket structure adopts a horizontal split design, like building a stable "base" for the pump body. To extend the service life of bearings, engineers optimize from both hydraulic and structural designs: they reasonably distribute radial and axial forces generated during slurry pump operation through in-depth fluid dynamics research, while correctly selecting suitable bearing types/models and carefully designing cooling and lubrication methods. These optimizations create a comfortable "working environment" for bearings, effectively reducing heat generation, enabling long-term stable operation, and greatly improving bearing life—laying a solid foundation for the stable operation of slurry pumps.



C. Shaft Seal Forms: Key Defense Lines Against Leakage

The shaft seal device plays a vital role in sealing the slurry pump, acting as a "protective wall" to prevent air from entering and excessive water from leaking out. Among common sealing forms, the auxiliary impeller plus packing seal is a frequently used hydrodynamic sealing method. The head generated by the auxiliary impeller effectively resists the outward leakage of liquid from the impeller outlet, while the back vanes on the impeller cover, water seal ring, and packing work together to prevent air entry, reduce pressure at the packing, and effectively block impurities from entering the sealing area—forming a complete and efficient sealing protection system.



The normal operation of the shaft seal relies on appropriate water volume and pressure. Shaft seal water volume must be precisely adjusted according to the slurry pump type to ensure both good sealing/cooling and no water waste. Shaft seal pressure is associated with the slurry pump outlet pressure, and the sealing system's stable operation is ensured by reasonably setting the pressure value. The selection of packing materials also depends on the slurry pump's working pressure—different pressure environments require packing with different performances to achieve optimal sealing effects.



II. Wide Adaptability to Meet Diverse Needs - Application Scope of Slurry Pumps

As a "star product" in the slurry pump family, the ZJ series slurry pump represents a new type of high-efficiency, energy-saving, and wear-resistant pump. This series integrates the advantages of similar domestic and foreign products and innovates based on them: optimizing fluid channels in hydraulic design to reduce energy loss and improve conveying efficiency; focusing on the rational layout and collaborative operation of components in structural design to enhance equipment stability; and using high-performance materials in wear-resistant applications to improve equipment wear resistance. The comprehensive application of these designs and technologies gives the ZJ series slurry pumps numerous advantages, such as high efficiency, energy saving, low vibration, low noise, reliable operation, long service life, and convenient maintenance. Their comprehensive performance is leading in China, with some efficiency indicators reaching international advanced levels.



With excellent performance, ZJ series slurry pumps are widely used in multiple industries, including power, metallurgy, coal, and building materials:



• In the hydraulic ash removal system of thermal power plants, they efficiently transport ash slurry (a mixture of furnace slag and water) to designated locations.
• In metallurgical concentrators, they are responsible for transporting mineral slurry from the mining site to each processing link, ensuring smooth ore dressing processes.
• In coal washing plants, they undertake the transportation of coal slurry and heavy media.

• Whether transporting ash slurry, coal slurry, mineral slurry, or heavy media, ZJ series slurry pumps easily cope with complex working conditions in different industries, demonstrating strong adaptability and reliability.



III. Standardized Operation and Scientific Maintenance: Key Points for Slurry Pump Use and Maintenance



1. slurry Pump Adjustment: Critical Steps to Ensure Precise Operation

Before putting the slurry pump into use, precise adjustment is essential. Checking and adjusting the clearance between the impeller and the front wear plate is particularly important—an appropriate clearance ensures the slurry pump's high efficiency and reduces component wear. Adjusting the motor rotation direction is also non-negligible: correct rotation is a prerequisite for the slurry pump's normal operation, as incorrect rotation can not only cause impeller disengagement but also damage other components. When adjusting the motor rotation direction, it must be done with the slurry pump and motor completely disconnected; only after ensuring the motor rotation direction meets requirements should the two be connected, avoiding equipment damage from blind motor starting.



2. slurry Pump Trial Operation: Cautious Control During Startup

Both single-stage and series slurry pumps must follow strict operation procedures when starting:



• For single-stage slurry pumps, sequentially open the shaft seal water and cooling water, inlet valve, fill the slurry pump with water (no need for self-priming pumps), adjust the outlet valve opening, and finally start the unit. During this process, starting the slurry pump with the outlet valve fully open must be avoided to prevent motor overload; similarly, controlling flow by closing the inlet valve is prohibited to avoid slurry pump cavitation.
• Starting series slurry pumps is more complex: due to their long delivery pipelines, the filling condition of slurry in the pipeline must be considered during startup. Each stage of the slurry pump should be started step by step in a specific order, and corresponding outlet valves should be opened sequentially to ensure the slurry smoothly and orderly fills the entire pipeline, avoiding faults such as motor overload or slurry pump cavitation caused by sudden high flow.



During slurry pump startup, close attention must be paid to the equipment's operating status: promptly check and adjust abnormal heating at the packing seal and the shaft seal water supply for mechanical seals. After the slurry pump runs normally, continuously monitor indicators such as shaft seal water, flow head, current, unit noise, and vibration to ensure stable operation and compliance with process requirements.



3. Pump Shutdown Precautions: Safety Protection During Shutdown

Shutdown operations must also be standardized to prevent equipment damage:



• Before stopping the slurry pump, slurry pump clean water for a period to clean the slurry in the pump and pipes, avoiding corrosion and blockage from residual slurry.
• After closing the outlet valve of the last-stage slurry pump, stop each stage of the slurry pump step by step from the last stage, simultaneously closing the corresponding shaft seal water and cooling water, and finally closing the inlet valve of the first-stage slurry pump.
• It is particularly important to never stop all stages of the pump simultaneously with the outlet valve fully open, as this can easily form a water hammer phenomenon, causing serious damage to the slurry pump and pipe fittings.



4. Maintenance: Effective Measures to Extend Equipment Life

Daily maintenance is the key to ensuring the long-term stable operation of slurry pumps:



• Keep the equipment clean, dry, oil-free, and leak-free to effectively prevent component damage from corrosion and contamination.
• Check the oil level in the bracket daily to ensure it is within the appropriate range, providing good lubrication for bearings.
• Regularly inspect the slurry pump's operating sound, vibration, and leakage to detect and address potential issues promptly.
• Prohibit the slurry pump from running in a  state to prevent severe vibration from affecting its life.
• Strictly prevent metal objects, large solids, and flexible objects from entering the slurry pump to avoid damaging flow-through components and blocking impeller passages.



Regularly inspect and adjust the pressure and flow of shaft seal water and cooling water to ensure they are in suitable conditions. For pumps using grease packing, refuel on time to maintain packing lubrication. Periodically detect shaft seal water leakage, promptly adjust packing gland bolts, or replace packing. Additionally, maintenance measures such as regularly adjusting the clearance between the impeller and front wear plate, detecting bearing temperature, replacing lubricating oil, and periodically rotating standby pumps can effectively extend the service life of slurry pumps and ensure the equipment remains in good operating condition.



Slurry pumps undertake important transportation tasks in industrial production through their precise structural design. Standardized operation and scientific maintenance are important guarantees for keeping this key equipment running stably for a long time. Only by deeply understanding the structural principles of slurry pumps and strictly following use and maintenance specifications can their performance advantages be fully utilized to escort the efficient and stable operation of industrial production.
