In - Depth Analysis and Application Guide of Common Transmission Methods for Slurry Pumps
Explore our in-depth analysis and application guide on common transmission methods for slurry pumps. Discover key insights, best practices, and expert tips to optimize performance and efficiency.
In industrial production, as a key device for transporting slurry, the stability and efficiency of power transmission of slurry pumps directly affect the entire production process. The transmission methods between slurry pumps and motors are important factors determining the operating performance of the equipment. The common transmission methods for slurry pumps mainly include direct coupling connection and belt connection. Each of these two methods has its own characteristics and is suitable for different working conditions. A deep understanding of their characteristics and application scenarios helps enterprises make more reasonable decisions during equipment selection and installation, thereby enhancing the operational stability of the equipment and production efficiency.
I. Direct coupling of coupling: The efficient choice for rigid connections
Direct coupling of the coupling is a transmission method where the motor and the slurry pump are directly connected through a rigid coupling. This method enables efficient transmission of the motor power and ensures the stable operation of the slurry pump. In practical applications, there are various types of couplings, among which claw-type, pin-type and diaphragm-type couplings are more common. Each of them has its unique structure and performance characteristics, making them suitable for different working scenarios.
The claw - type coupling is popular in some working conditions with low requirements for torque transmission due to its simple structure and ease of manufacture. Its simple structural design and fewer components make the production and manufacturing process relatively easy, effectively reducing equipment costs. However, due to its inherent structural limitations, the claw - type coupling can transmit relatively small torque. If applied in scenarios with high torque requirements, problems such as insufficient power transmission and accelerated coupling wear may occur, affecting the normal operation of the slurry pump. Therefore, the claw - type coupling is more suitable for working conditions with low torque requirements and a relatively stable working environment, such as transporting slurry with good fluidity and low concentration.
The pillar pin coupling excels in torque transmission, capable of withstanding substantial power loads, making it suitable for work environments with high torque requirements. In some large-scale industrial production processes, slurry pumps need to transport high concentrations of thick slurry, which requires significant torque to drive the pump body. The pillar pin coupling showcases its advantages in such situations. However, extra caution is necessary during installation and maintenance of the pillar pin coupling. Due to its relatively complex structure and numerous components, precise alignment of the motor and pump shaft during installation is essential to ensure accurate placement of the pillar pins. Otherwise, issues such as vibration and noise may arise during coupling operation, affecting the stability and service life of the equipment. During maintenance, specialized technicians must follow strict operating procedures for disassembly and installation to ensure the performance of the coupling.
The diaphragm - type coupling integrates the advantages of the claw - type and pin - type couplings. It can not only transmit large torque but also has excellent vibration - damping performance. It uses a diaphragm as an elastic element, and the elastic deformation of the diaphragm compensates for the relative displacement between the motor and the pump, effectively reducing the impact and vibration caused by installation errors, equipment vibration, and other factors. In some occasions with high requirements for equipment operation stability, such as fine chemical production and factories with strict noise control, the diaphragm - type coupling can play an important role. It can reduce the vibration and noise during the operation of the slurry pump, minimize the impact on surrounding equipment and the environment, and at the same time extend the service life of the equipment and reduce maintenance costs. In practical applications, enterprises should comprehensively consider factors such as the nature of the slurry, transportation requirements, and installation space according to specific working conditions, and select appropriate coupling types to ensure that the direct coupling connection method can provide stable and efficient power transmission for the slurry pump.
II. Belt Connection: A Flexible Transmission Solution

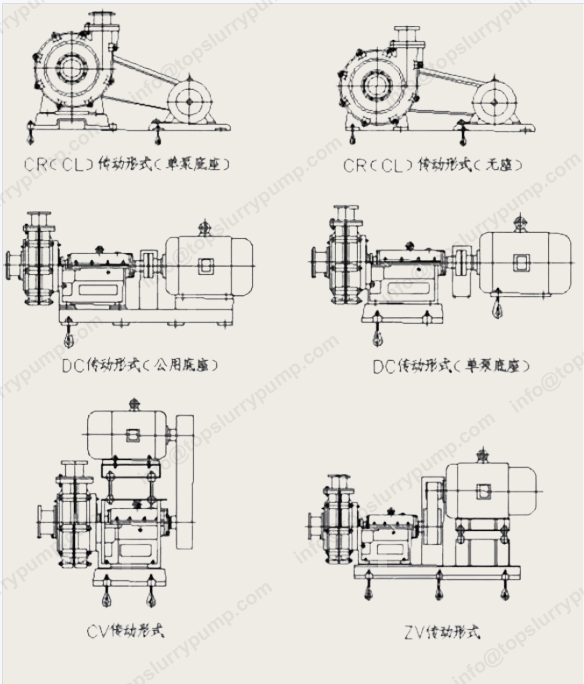

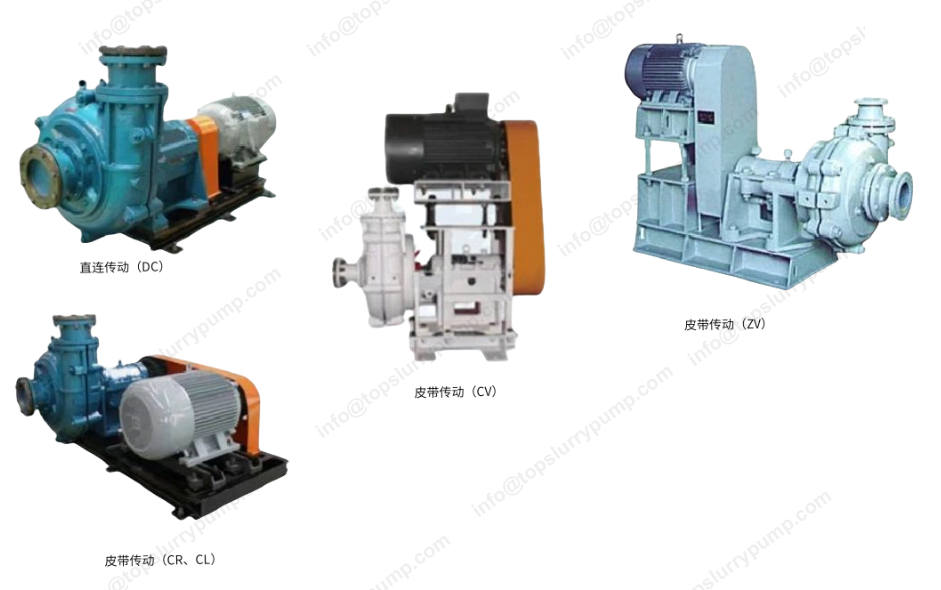

The belt connection is a transmission method that realizes power transfer through the pulley on the motor and a belt connecting the motor and the slurry pump. This transmission method has various types, including CV, CR, CL, ZV, etc. The differences between these types mainly lie in the layout and design of the slurry pump and the motor, and each type has its unique advantages and application scenarios.
In the CV transmission method, the motor is located above the pump. The greatest advantage of this unique layout is that it can save installation space. In some factory workshops with limited space and compact equipment layouts, the CV transmission method can make full use of the vertical space by installing the motor above the pump, avoiding equipment installation difficulties caused by insufficient horizontal space. It is especially suitable for working conditions with high requirements for installation space and the need to achieve efficient equipment operation within a limited space, such as equipment renovation projects in some old factories or production workshops of small - scale factories.
In the CR and CL transmission methods, the motor is located on the left or right side of the slurry pump, and both are equipped with a common base. This design makes the combination of the motor and the slurry pump more stable. The common base can provide good support for the equipment, reducing the vibration during equipment operation. In some occasions with high requirements for equipment stability, such as the slurry transportation system in large - scale mines, where the slurry pump needs to operate continuously and stably for a long time, the CR and CL transmission methods can meet this requirement. Through reasonable layout and the design of the common base, they enhance the overall stability of the equipment, ensuring that the slurry pump can operate reliably in harsh working environments.
In the ZV transmission method, the motor is located directly behind the slurry pump, also equipped with a common base, and it also has a specially designed structure to prevent the motor from water ingress. This unique design makes the ZV transmission method suitable for pumps and motors of various powers, especially in some wet working environments where the motor is likely to come into contact with water, such as sewage treatment plants and factories in coastal areas. The structure for preventing water ingress can effectively protect the motor, avoiding problems such as short circuits and damage caused by water entering the motor, and improving the reliability and safety of the equipment. When choosing the belt - connection transmission method, enterprises need to comprehensively consider factors such as their own production process requirements, equipment installation environment, and the power of the slurry pump and the motor, and select the most suitable transmission type to give full play to the advantages of the belt - connection method and meet the transmission requirements of slurry pumps in different working environments and process requirements.
The selection of the transmission method for slurry pumps is a process that requires comprehensive consideration of multiple factors. The two common transmission methods, direct coupling connection and belt connection, each have their own merits. The direct coupling connection realizes efficient power transmission through rigid connection, and different types of couplings are suitable for working conditions with different torque requirements; the belt connection meets various complex installation environments and process requirements with its flexible layout and design. In practical applications, enterprises should fully understand the characteristics and application scenarios of these transmission methods, combine with their actual production situations, and make scientific and reasonable choices to ensure that the slurry pump can operate stably and efficiently, providing strong support for the smooth progress of industrial production.
